Corrugated Industry Material Handling Conveyor Systems
Merek :Newkuani
produk asal :Jiangsu,China
waktu pengiriman :20days
kapasitas pasokan :100sets/month
NEWKUANI have successfully developed the intelligentized , economical, and efficient logistics conveyor system to solve the problems that traditional paper industry have, such as variable order and material, complex operation , human cost and etc.
Rotation conveyor with Module Plastic Belt ：
1）Main parameter
l Structure composition: Module plastic belt conveyor, rotating 90 degrees mechanism and track composition;
l Rotating motor: 1.5 kw, BONENGG, Belt conveyor motor: 2.2kw;
l Rotation speed: MAX30m/min; Belt conveyor speed: MAX30m/min;
l Belt material: POM material, plastic thickness 12mm, maintain easy and simple, less cost, supporting article adopts ultra-high molecular weight pressure, wear-resisting material, the lowest friction between plastic belt and supporting article.
l The rotating mechanism is made up of giant slewing bearing and reducer.
l Bearing is FK brand, chain frame with the introduction of butter, easy to maintain;
l There are mechanical and electrical limits on the rack;
l The maximum load of the paper sheet ≤300kg/m².
2）Function:90°degree transport paper sheet.

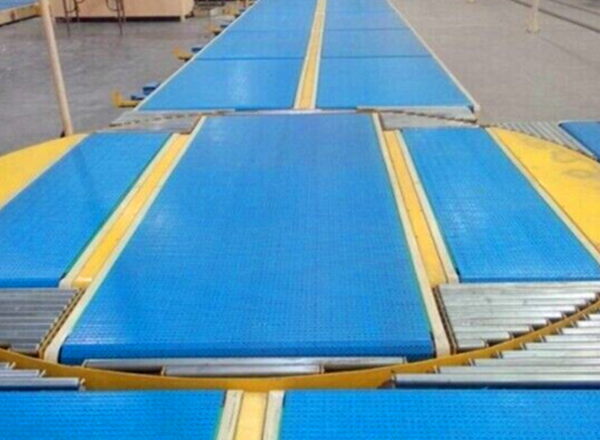

3） Outline picture
