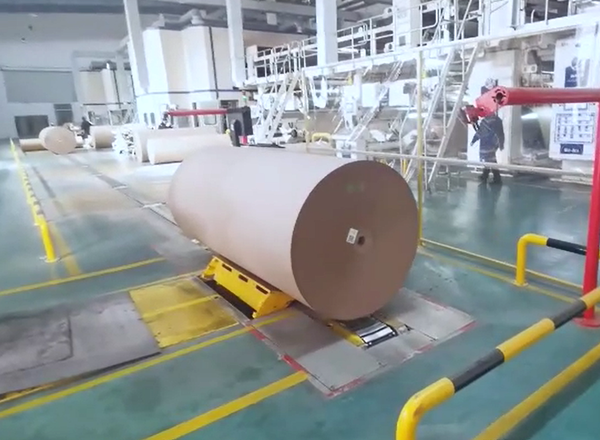

Paper Roll Warehouse Conveyor Systems
Merek :Newkuani
produk asal :China
waktu pengiriman :20days
kapasitas pasokan :100sets/month
The intelligent paper roll conveyor system is mainly responsible for the transportation and management of the roll paper needed in the corrugator line.
Paper Roll Lifter with Chain Conveyor：
1) Main parameter
l Dimension： 3000mmL*2700mmW*mmH customized;
l Structure:Gantry framework,gantry crane basket drive, chain conveyor ,safety protective gate, etc.
l Gantry framework:the whole frame is welded by national standard steel profile,the surface electrostatic painting treatment RAL5008. Safety net on sides; with super long material detection at the front and rear parts .
l Gantry crane basket drive: crane lifter drive by gearbox and chain drive; and the crane basket frame is welded by national standard steel profile, the surface electrostatic painting treatment TAL1023.
l Safety protective gate:quick safety gate structure, when paper roll enters the lifter, the safety gate will close.
l Power:chain conveyor power:2.2kw;Lifting power: 18.5kw, motor brand：BONENG;
l Max capacity for lifting:4.5T,Chain conveyor speed:max24m/min, lifting speed:max30m/min, frequency control by inverter.
l Width of paper roll:600mm-2850mm, lift one paper roll each time, paper roll diameter:φ350mm-1500mm;
2) Function：Lift paper roll to specified height.
3) Outline Example:
